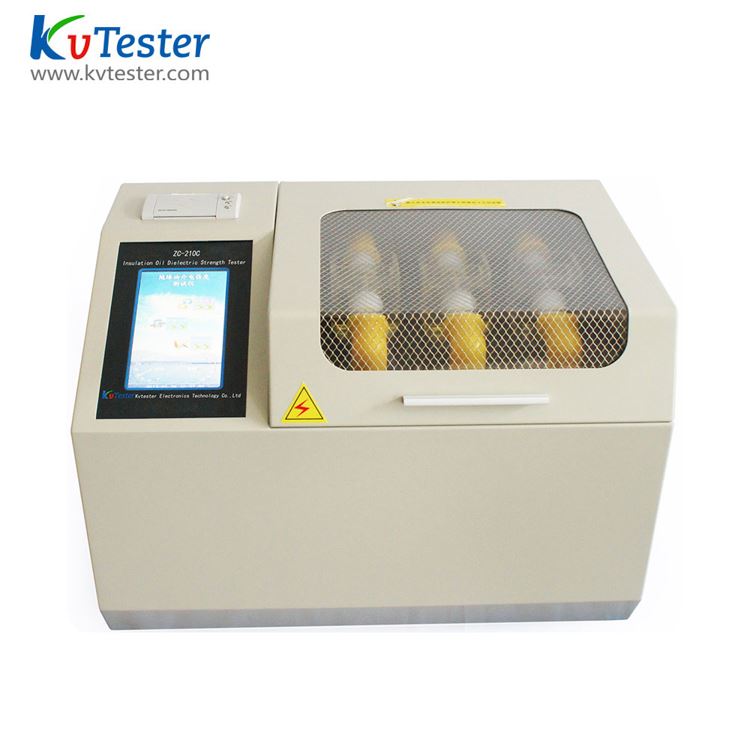

Three Cups BDV Test Kit
Three cups Dielectric Strength oil Tester can test three cups of oil at the same time. It is very easy for customers to measure the breakdown voltage of all kinds of oil.
Many power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment whose internal insulation are mostly oil-filled insulation type, and therefore, test on insulating oil dielectric strength is common and necessary.
To meet the needs of the market, we have developed and produced a series of insulating oil dielectric strength testers according to national standard GB/T507-2002, industry standard DL429.9-91 and the latest Electric Power Industry Standard DL/T846.7-2004 by ourselves. This instrument, by using a single-chip microcomputer as the core, and operate in full automation with high accuracy, greatly improving work efficiency and reducing the labor intensity of workers.
Three cups Dielectric Strength oil Tester Features
1. With a microprocessor, three cups of a body, automatically fulfill the withstand voltage test for oil circulation with a range of 0~100KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations)
2. Display by large-screen LCD and prompt by English menu.
3. The instrument has the advantages of simple operation, the operators only need a simple setup, instrument will automatically set in accordance with 1-3 oil sample pressure test.
4. Each oil sample, each breakdown voltage value and the number of cycles will be automatically stored, after completion of the test, the thermal printer can print out the breakdown voltage value and average value.
5. Maintain power down, can store 100 experimental results, and can display the current environment temperature and humidity.
6. Using single chip microcomputer control speed boost, voltage frequency accuracy to 50HZ, makes the whole process easy to control.
7. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.
8. With the function of displaying the measured temperature and system clock.
9. Communicate with computer with a standard RS232 interface.
Three cups Dielectric Strength oil Tester Technical Data
Voltage distortion rate
Voltage raising speed
0.5~5 KV/S (adjustable)
5 min (adjustable)
AC220V±10% 50Hz±1 Hz
3 Cups Transformer Oil Breakdown Voltage Tester PACKING LIST
Insulation Oil Dielectric Strength Tester Host
Factory Inspection Report
